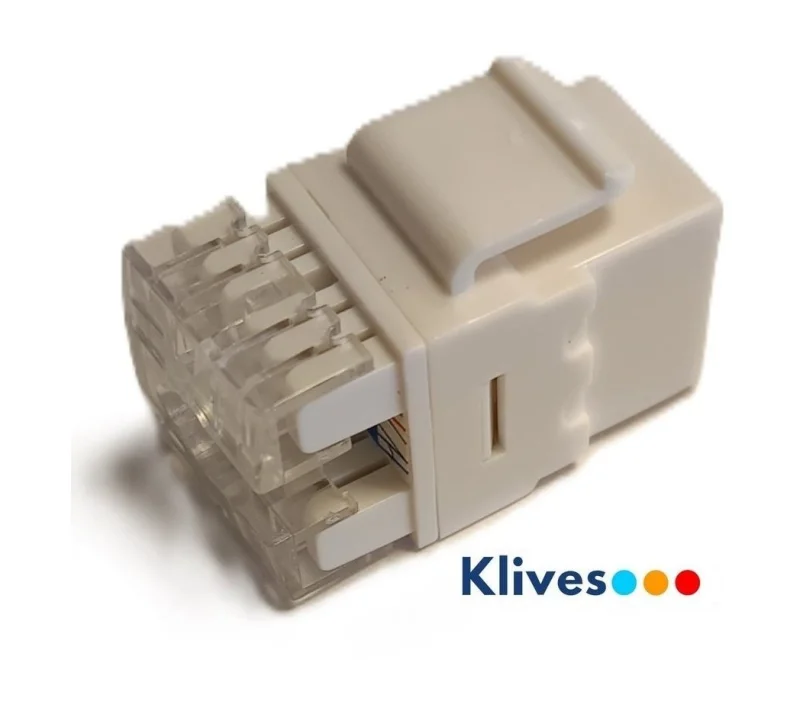

Conector RJ45 Hembra CAT6 180º Blanco

Conector RJ45 Hembra tipo Keystone CAT6 UTP para patch panel. Color Blanco. Ángulo 180º

Tipo: Keystone RJ45 CAT6 UTP
Color: Negro.

Formato Keystone.
8 contactos.
Crimpado por impacto.

UTP Cat6 keystone Jack,Dual IDC type,180 Degree

ELECTRICAL:

1.VOLTAGE RATING : 125 VAC RMS

2.CURRENT RATING : 1.5 AMP

3.CONTACT RESISTANCE : 100 MILLIOHMS MAX

4.INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC

5.DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN

6. C6 PERMANENT LINK : CONFORM TO ANSI/TIA/EIA-568 B.2-1

ENVIRONMENTAL:

1.STORAGE : -40° TO +85°

2.OPERATION : 0° TO 70°

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F.

MECHANICAL:

1. HOUSING MATERIAL  : PC UL94V-2

2. INSERT MATERIAL :  FLAME RETARDANCY ABS UL94V-2

3. PCB MATERIAL : FR-4 THICKNESS:1.6mm

4. CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm

5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50mm NICKEL PLATING

6. WIRE : AWG 24~26
